Plan 911055JVD

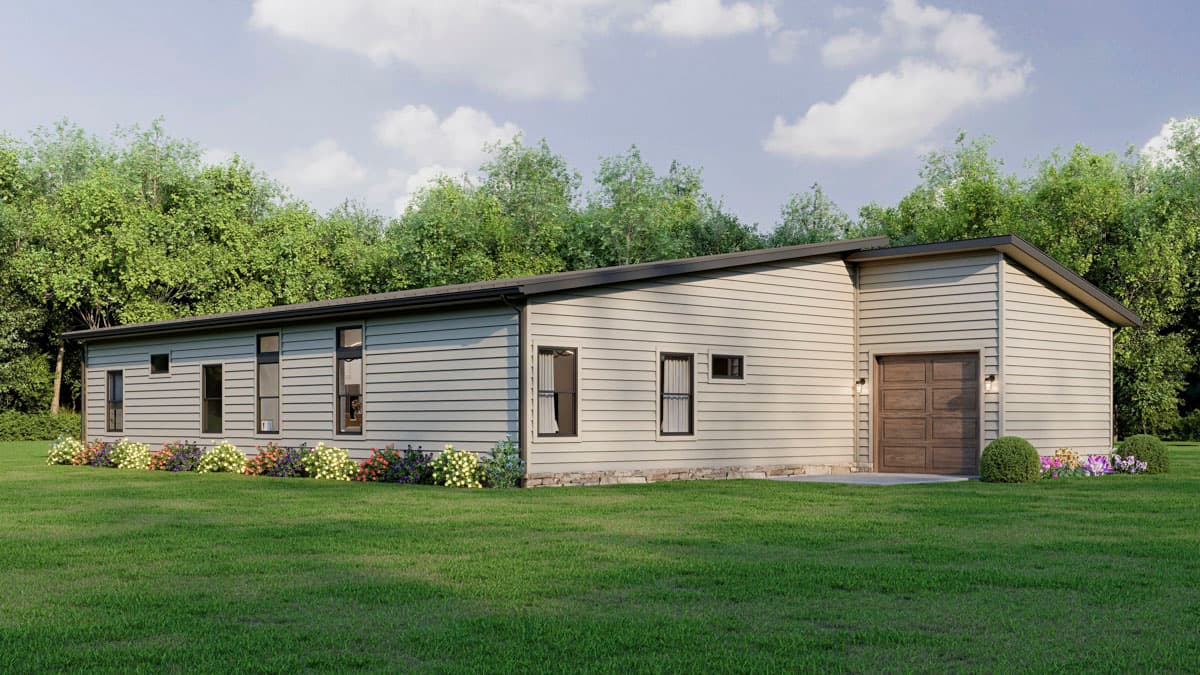

Contemporary 3-Bedroom House Plan with Split Layout and Side Garage

Heated S.F.
1,611
Beds
3
Baths
2
Stories
1
Cars
1
Tour

Floor Plan

Plan 911055JVD

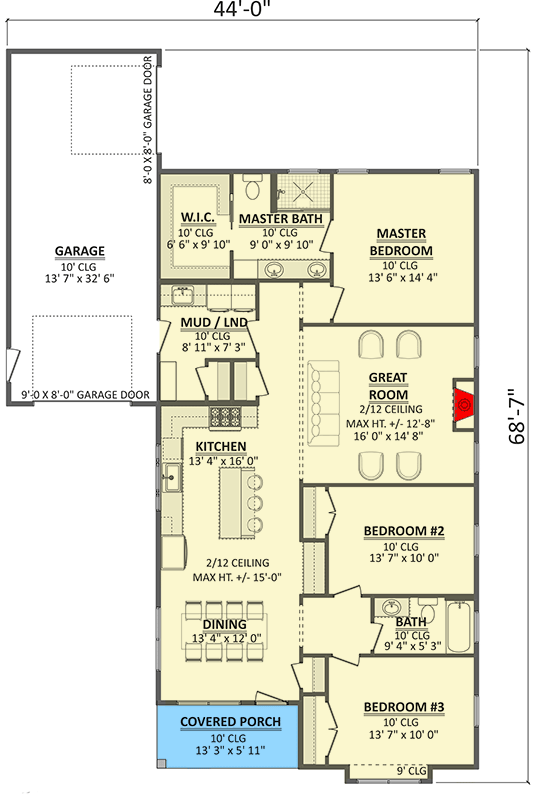

Main Level
Main Level

Plan 911055JVD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 911055JVD: Contemporary 3-Bedroom House Plan with Split Layout and Side Garage - Floor Plan - Main Level - Contemporary, Cottage, Florida-Style, Transitional, Vacation

Plan Details

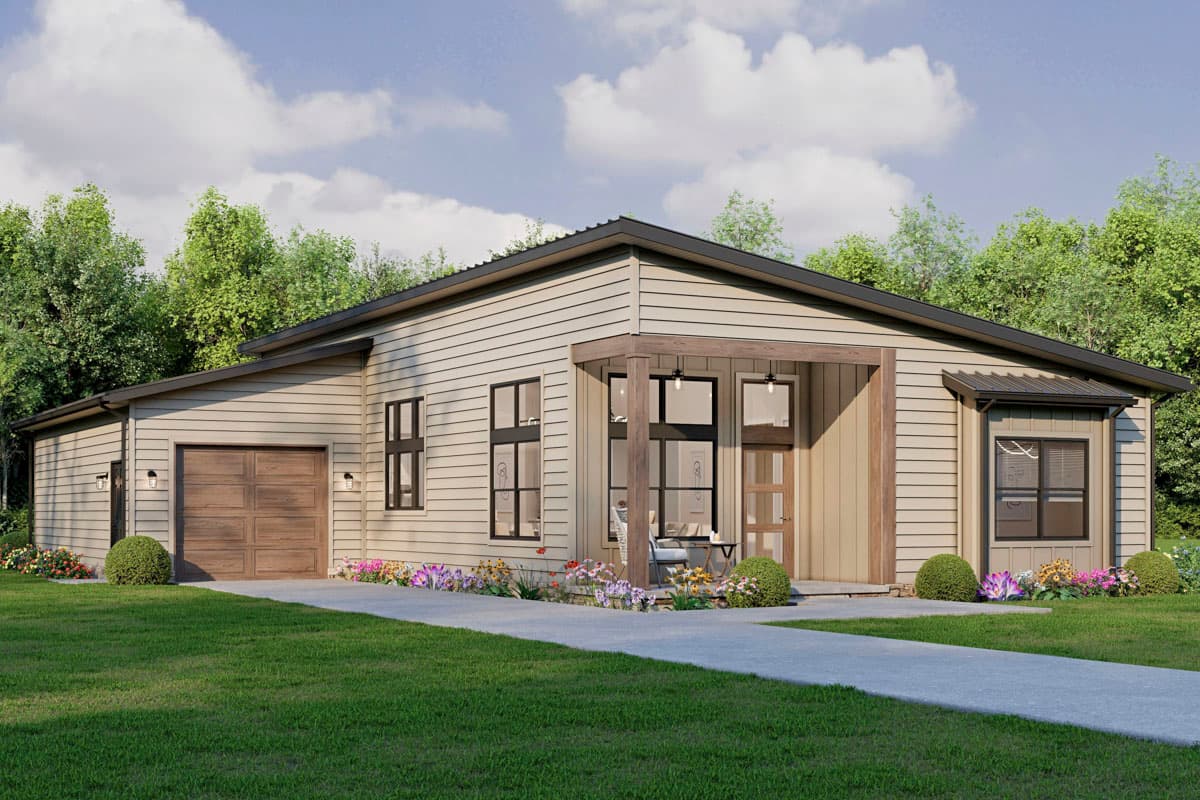

  • This 1,611 sq. ft. Contemporary Florida-style house plan offers comfortable single-story living with 3 bedrooms, 2 bathrooms, and a 470 sq. ft. side-entry 1-car garage.

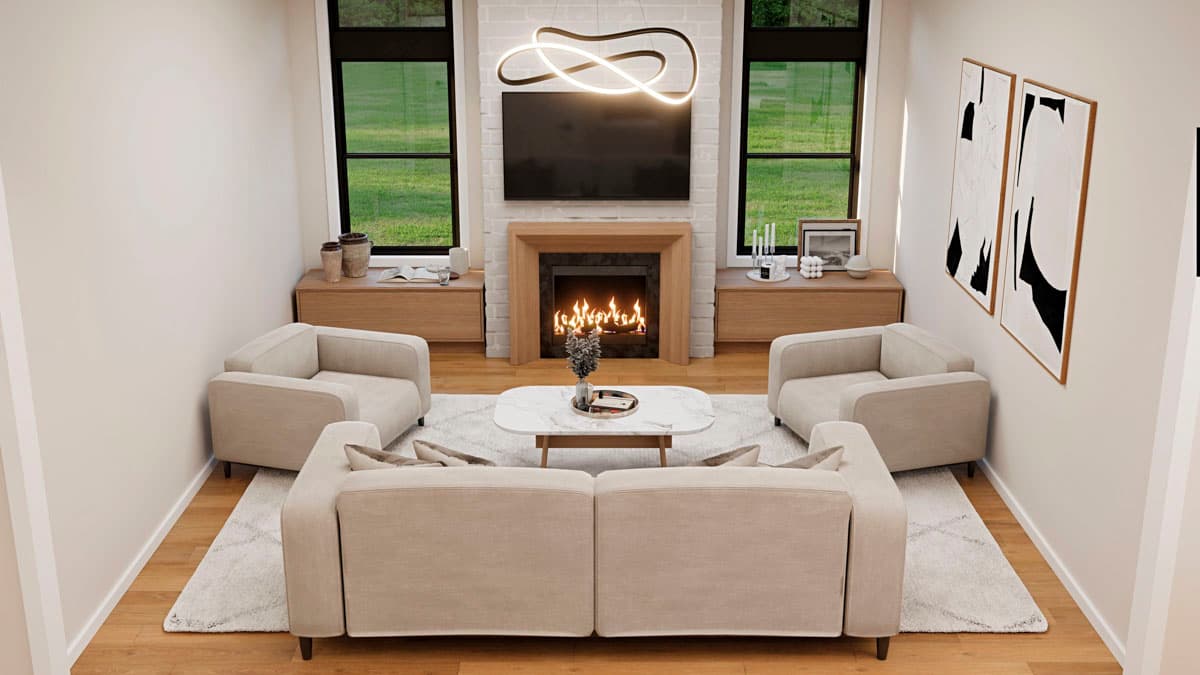

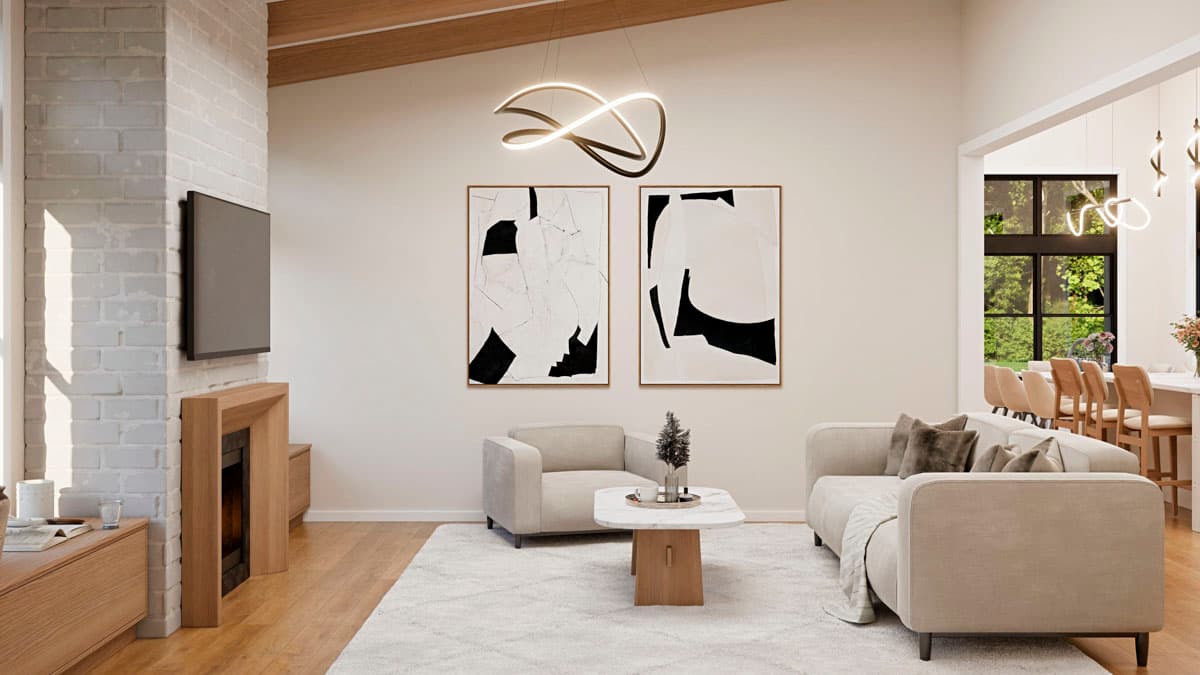

  • Step inside from the inviting 80 sq. ft. front porch, where soaring 10-foot ceilings enhance the open-concept living area, perfect for daily life and casual gatherings.

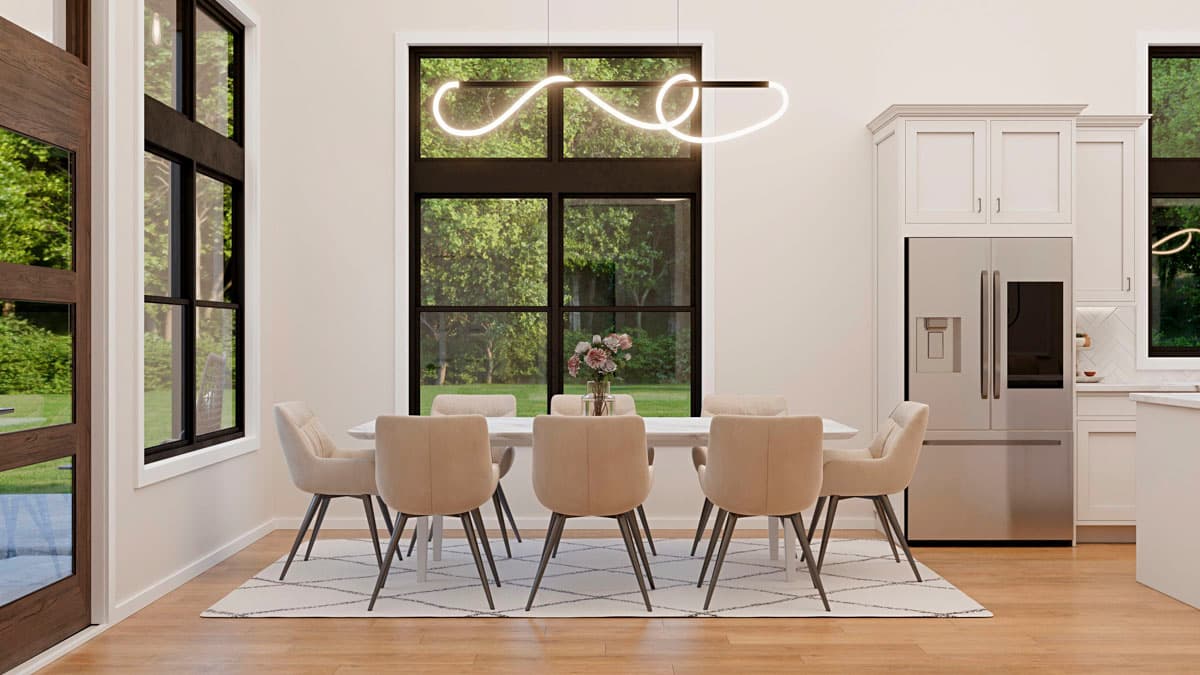

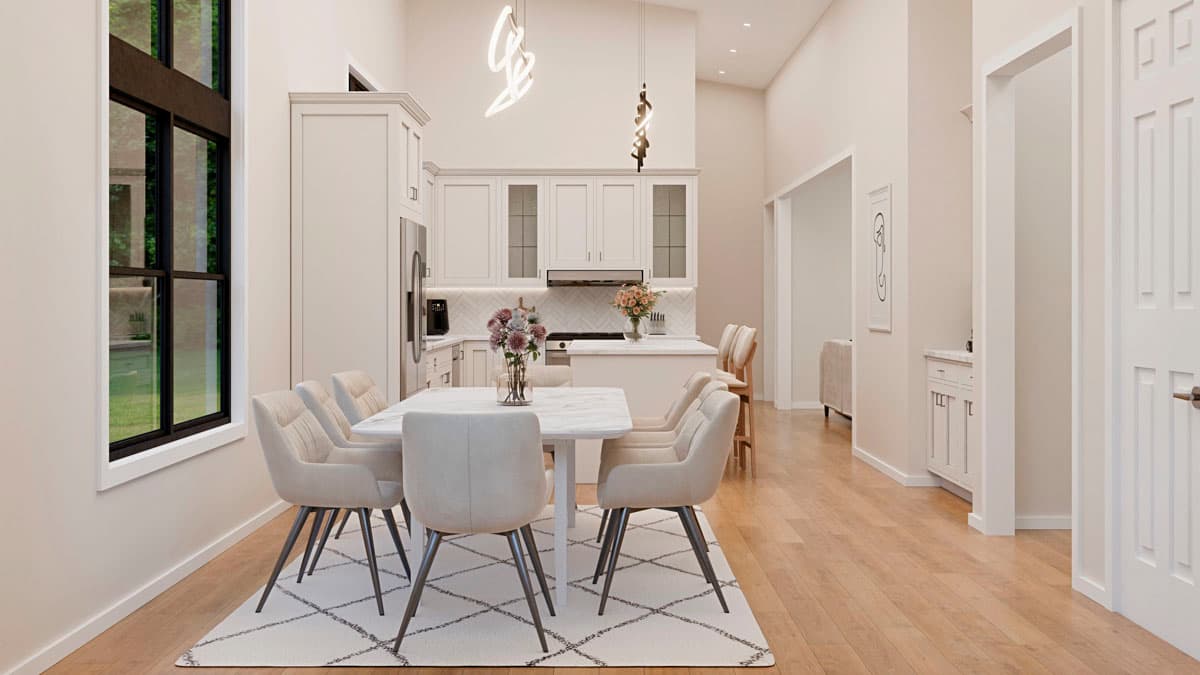

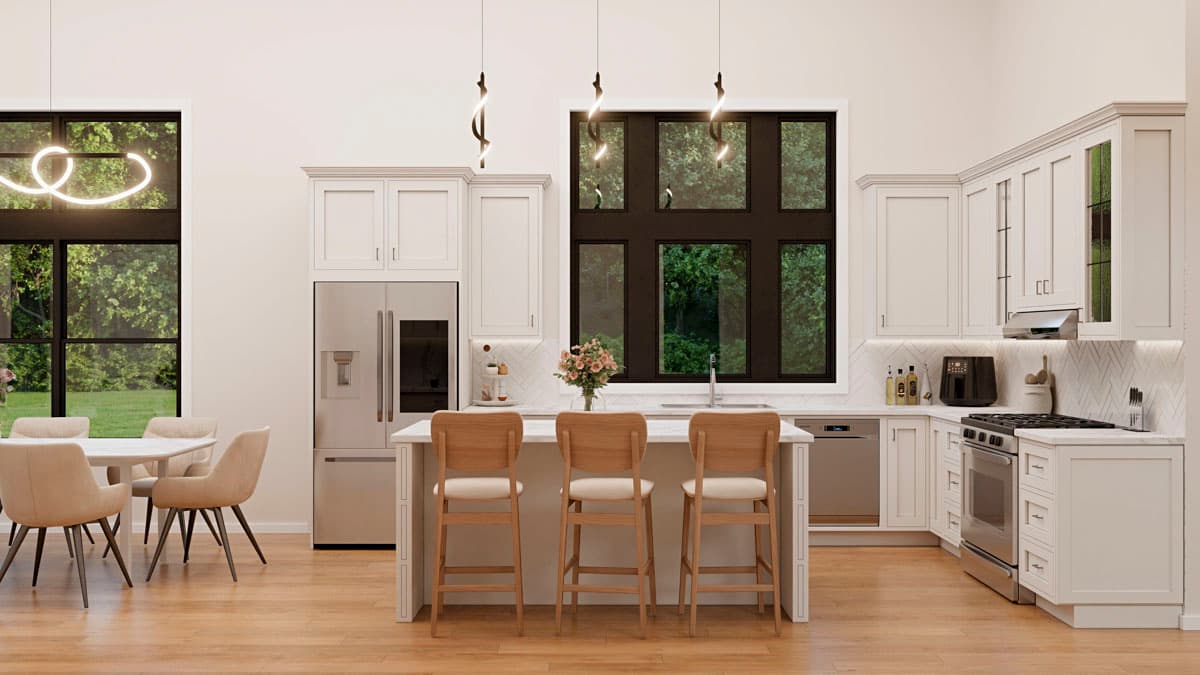

  • The seamless flow connects the living room, dining area, and kitchen, creating an expansive central hub. The well-appointed kitchen features ample counter space, ideal for culinary exploration and lively conversations, while the adjacent mudroom provides a practical transition from the garage.

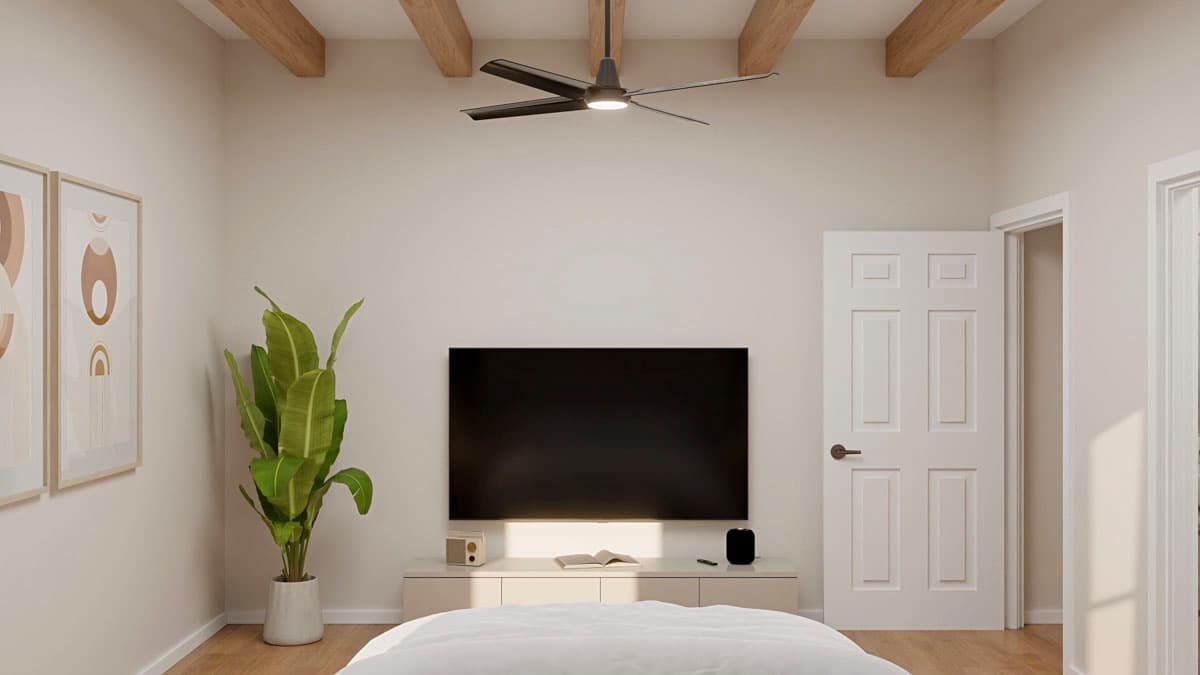

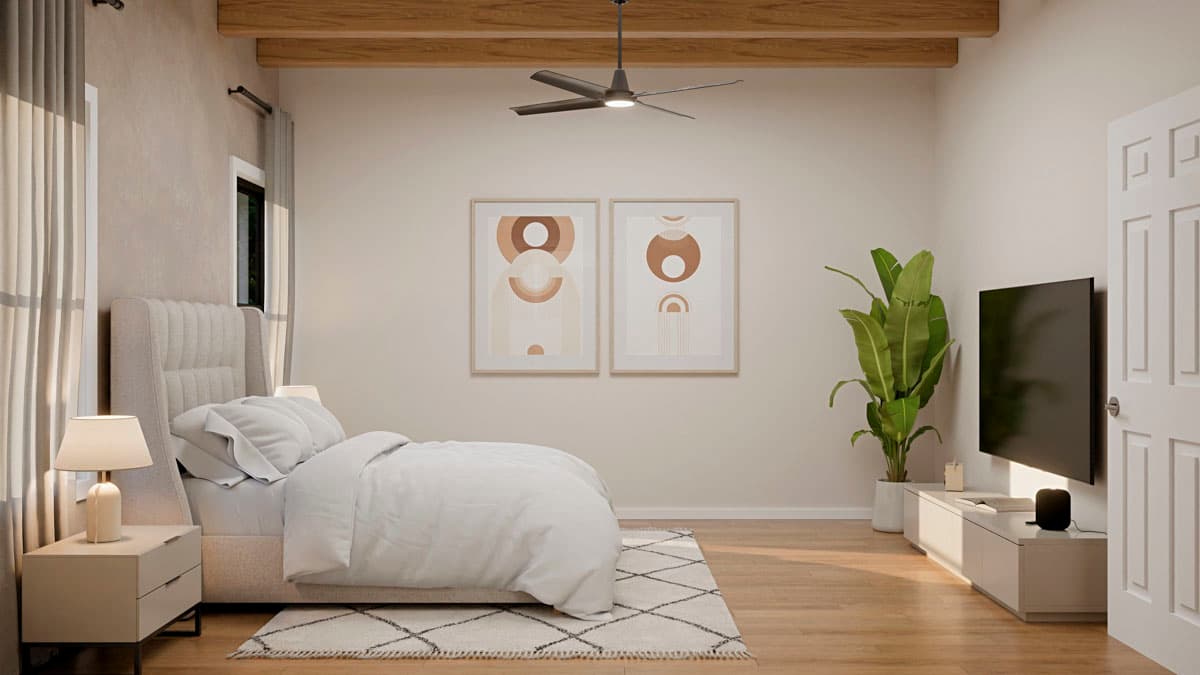

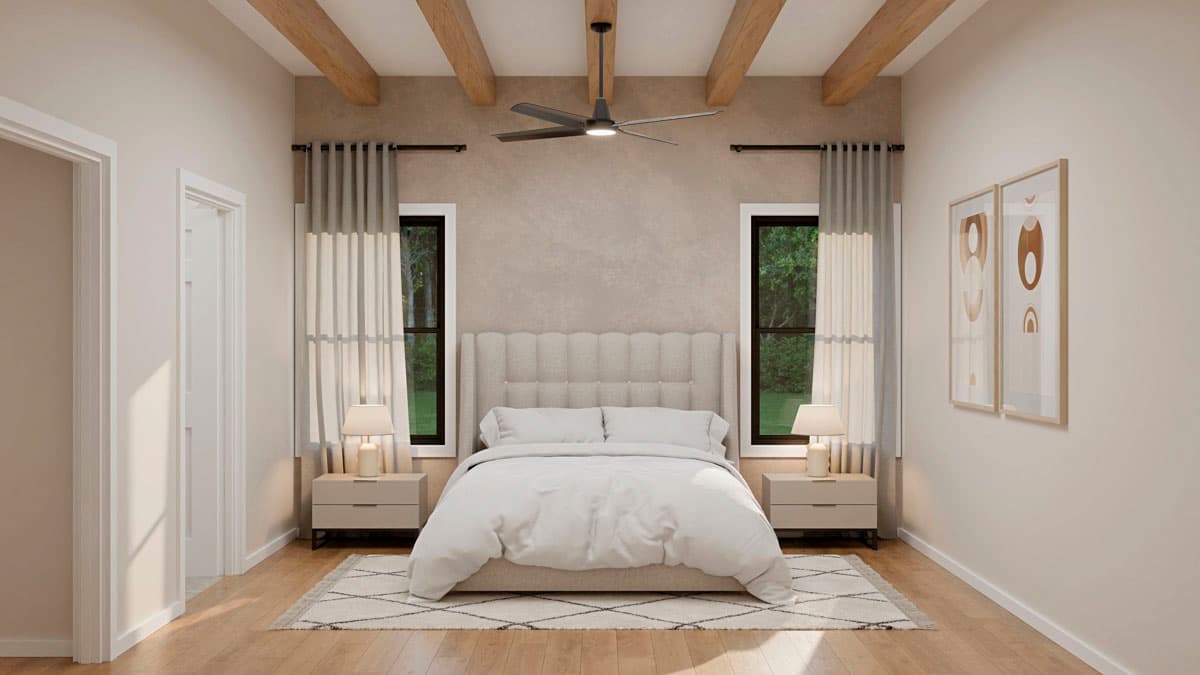

  • The private first-floor master suite, a sanctuary for relaxation, is thoughtfully separated from the two secondary bedrooms by the main living areas, ensuring privacy with its desirable split bedroom layout and convenient main-level laundry access.

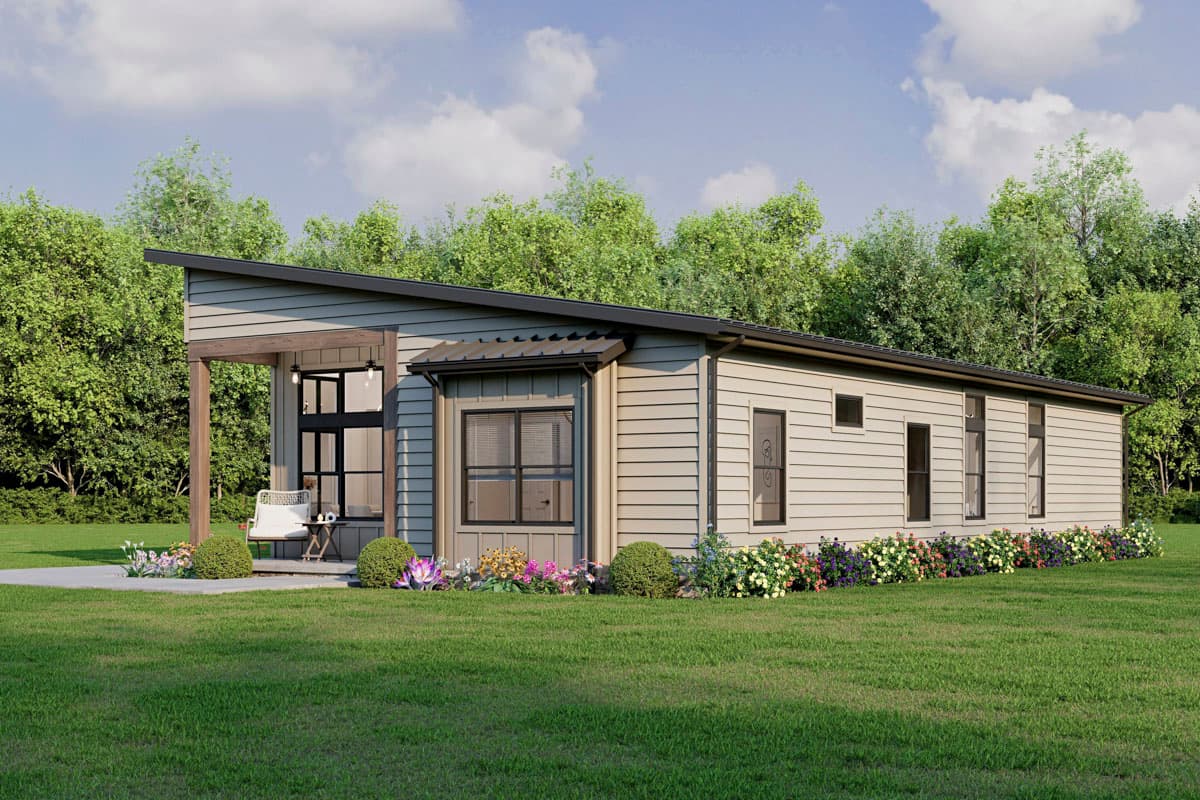

  • Enjoy tranquil mornings or peaceful evenings on the charming 80 sq. ft. covered front porch, a perfect spot to greet neighbors or simply unwind outdoors.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)

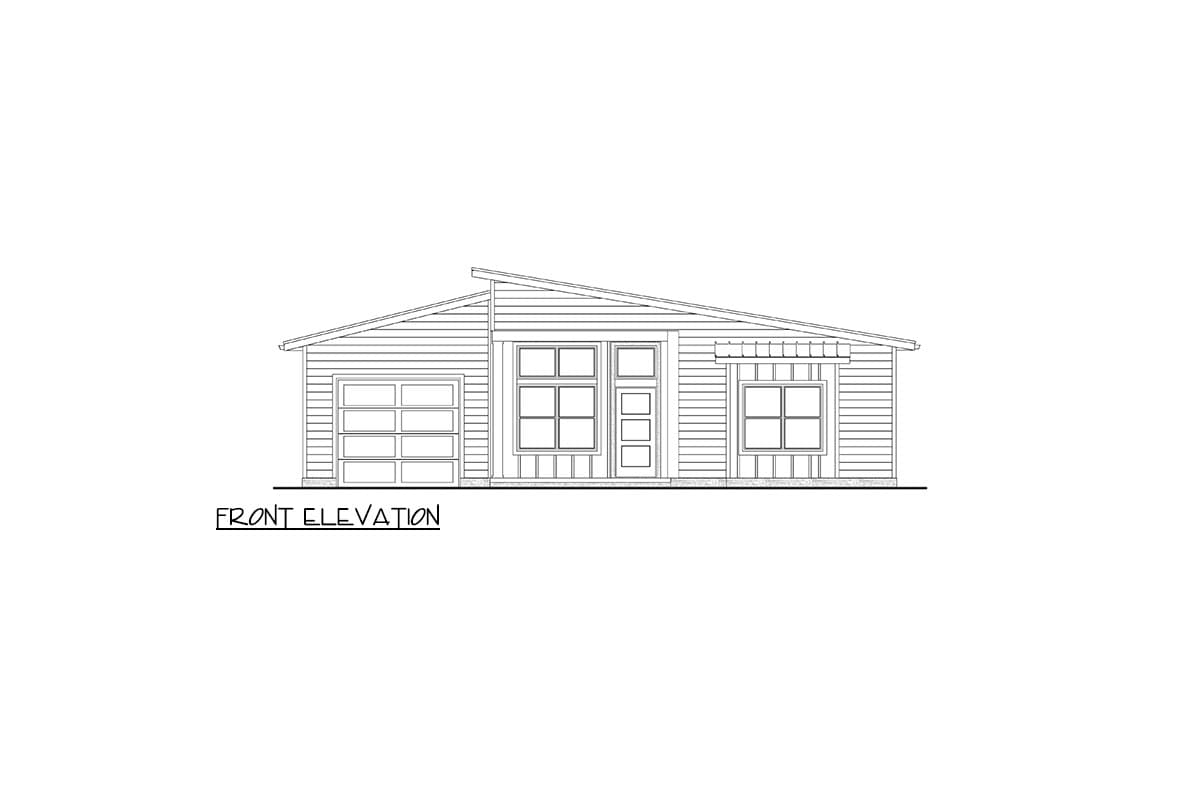

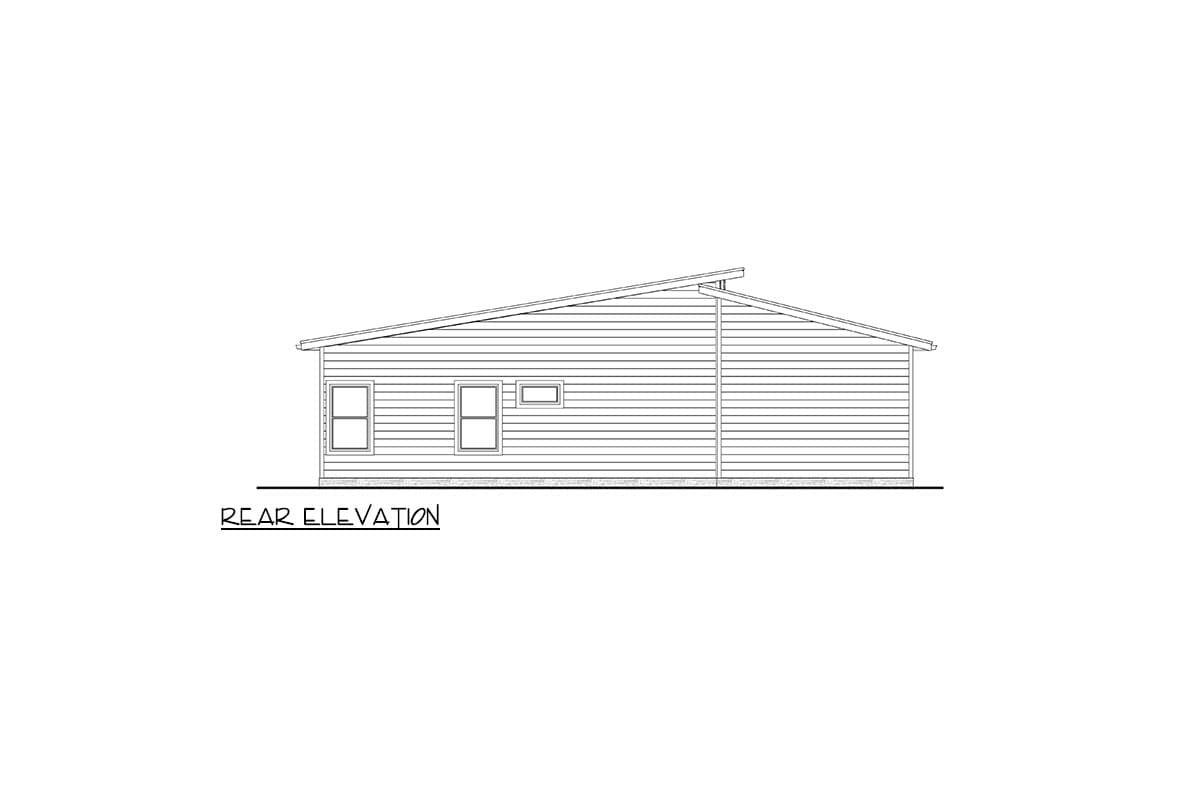

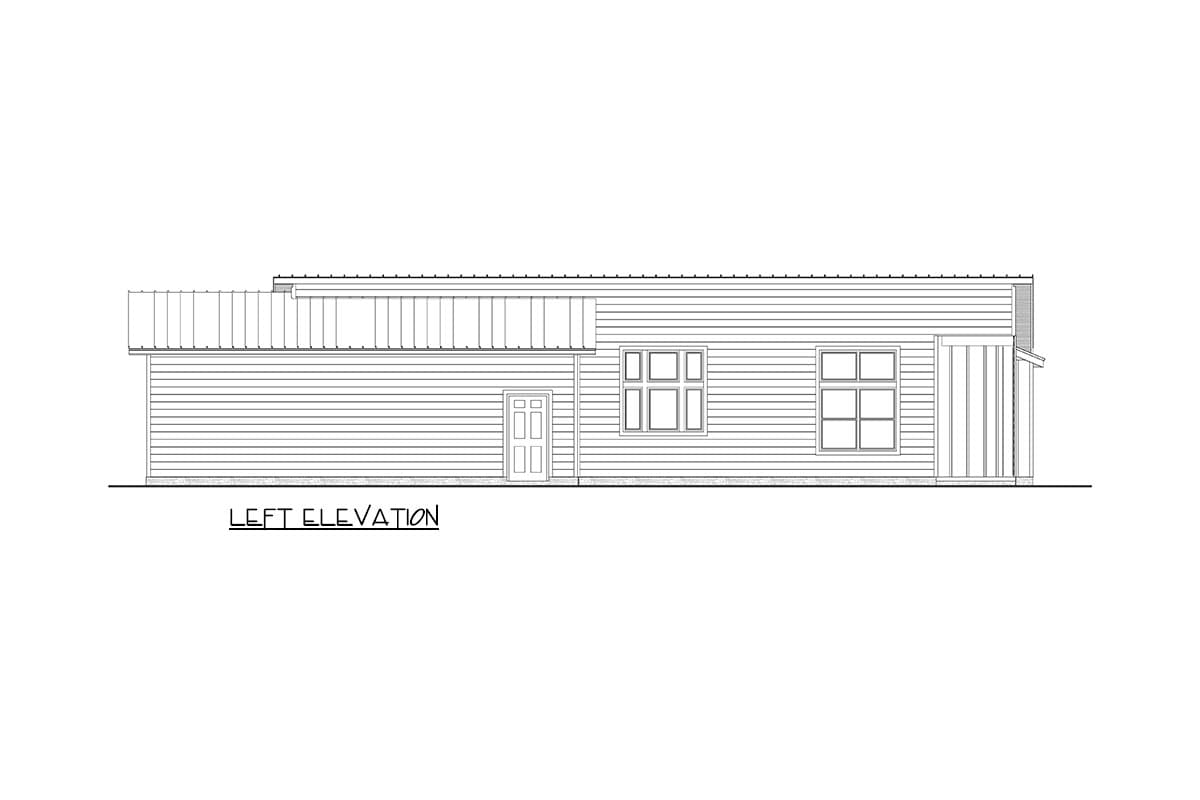

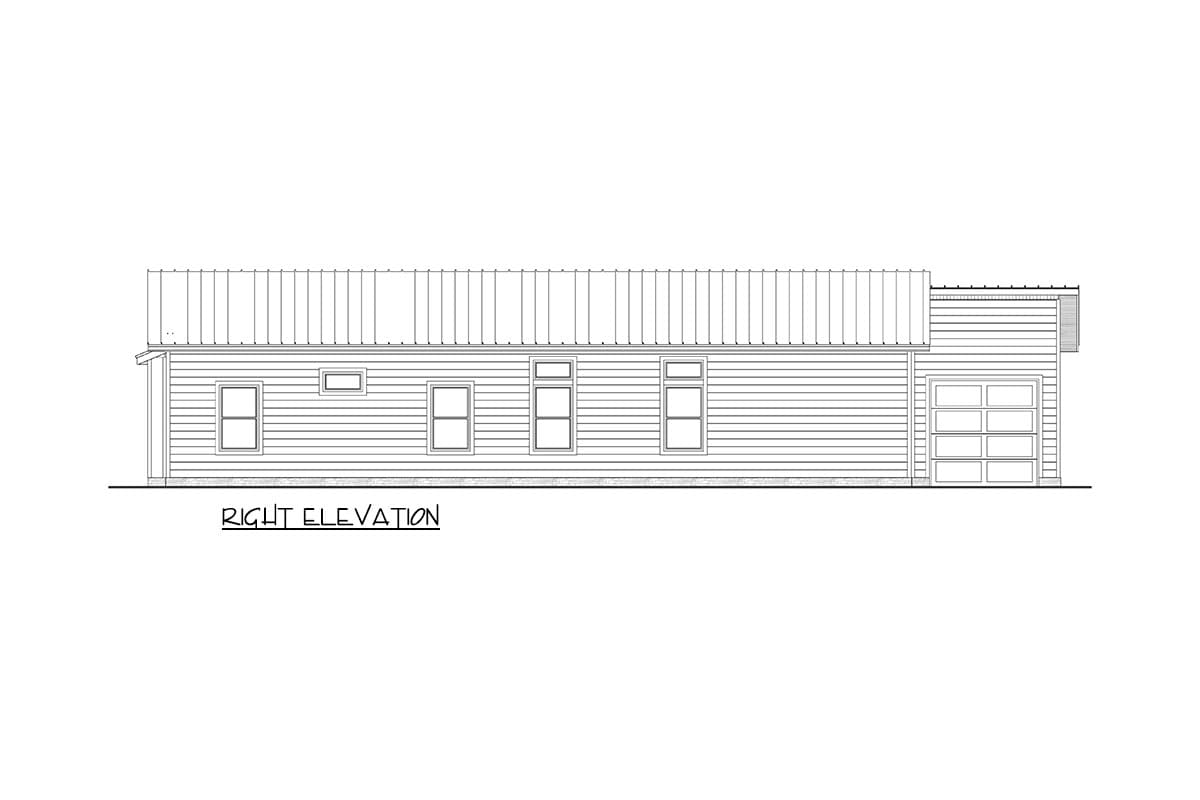

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,611 sq. ft.

1st Floor

1,611 sq. ft.

Porch, Front

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

68' 7"

Max Ridge Height

15' 1"

Garage

Type

Standard

Area

470 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Framing Type

Stick And Truss

Architectural Style

Contemporary

Cottage

Florida-Style

Transitional

Vacation

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,611 sq. ft.

1st Floor

1,611 sq. ft.

Porch, Front

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

68' 7"

Max Ridge Height

15' 1"

Garage

Type

Standard

Area

470 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Framing Type

Stick And Truss

Architectural Style

Contemporary

Cottage

Florida-Style

Transitional

Vacation

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
