Modern Duplex House Plan with Two Units and 5 Bedrooms

Heated S.F.
2,762
Units
2
Width
Depth

Floor Plan

Plan 185029PHD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 185029PHD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

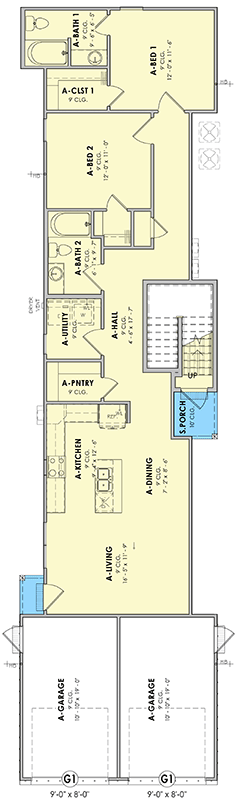

Plan 185029PHD: Modern Duplex House Plan with Two Units and 5 Bedrooms - Floor Plan - Main Level - Modern, Mountain, Traditional

2nd Floor

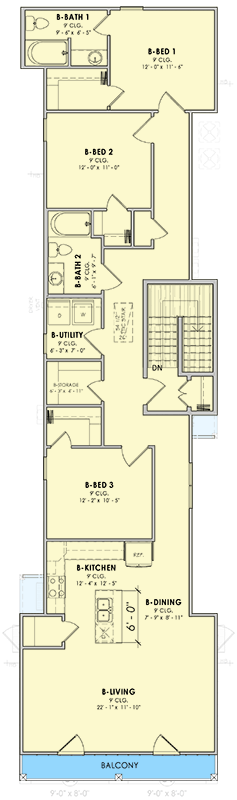

Plan 185029PHD: Modern Duplex House Plan with Two Units and 5 Bedrooms - Floor Plan - 2nd Floor - Modern, Mountain, Traditional

Plan Details

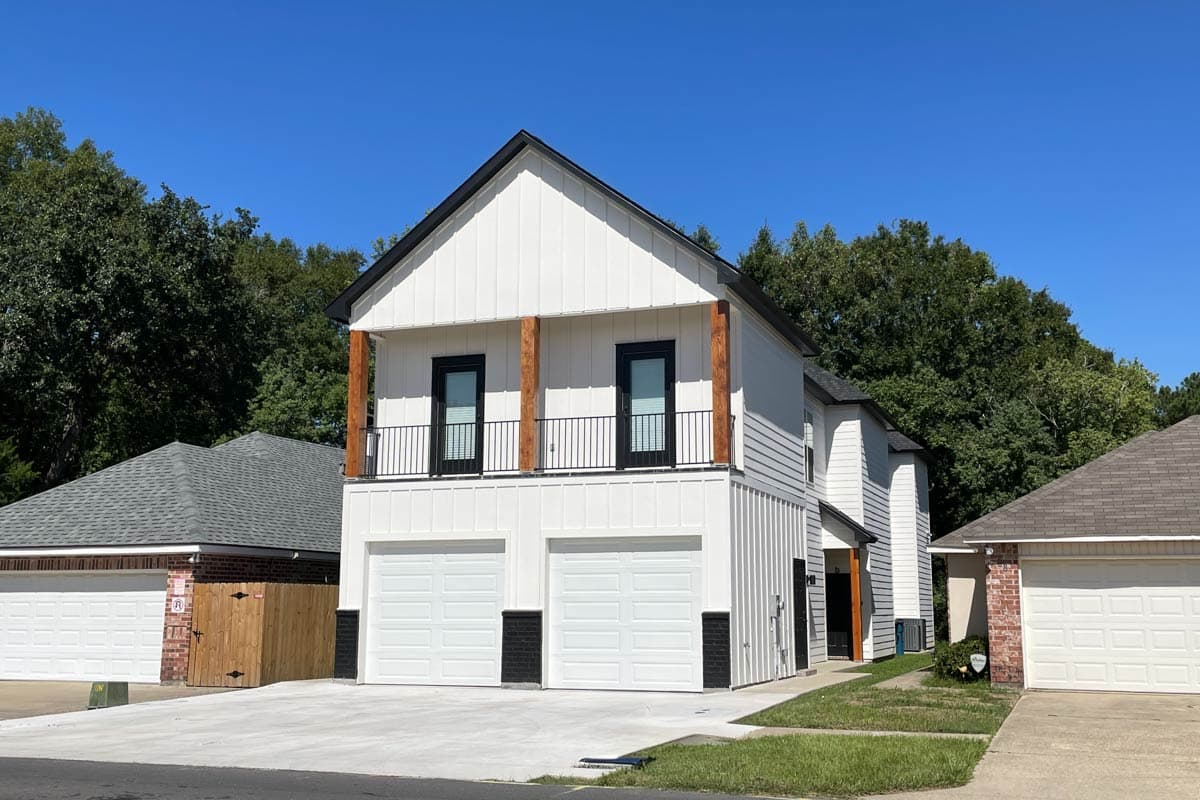

  • This Modern Traditional duplex house plan offers a total of 2,762 finished sq ft, featuring 5 bedrooms, 4 full baths, and two front-entry single-car garages totaling 436 sq ft.

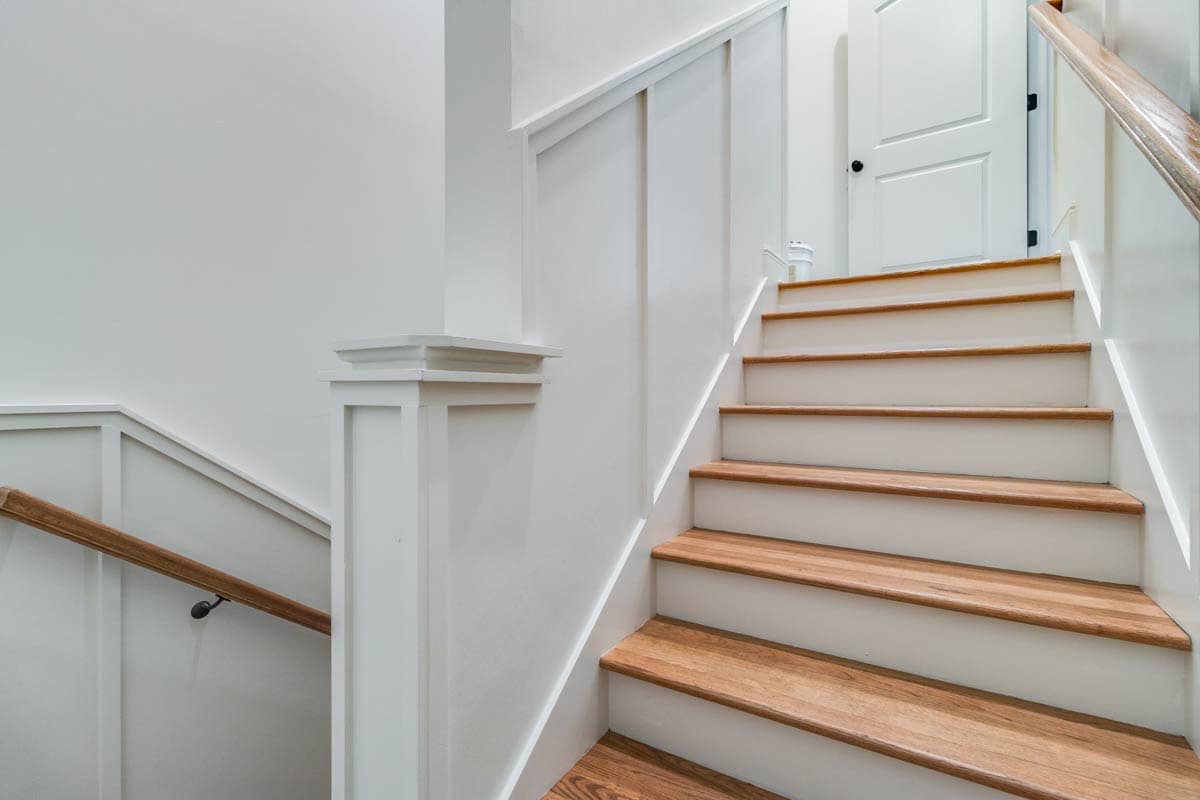

  • Each private entrance leads to an efficiently designed unit, with Unit A offering ground-level living and Unit B providing spacious upstairs accommodations accessed via an interior staircase.

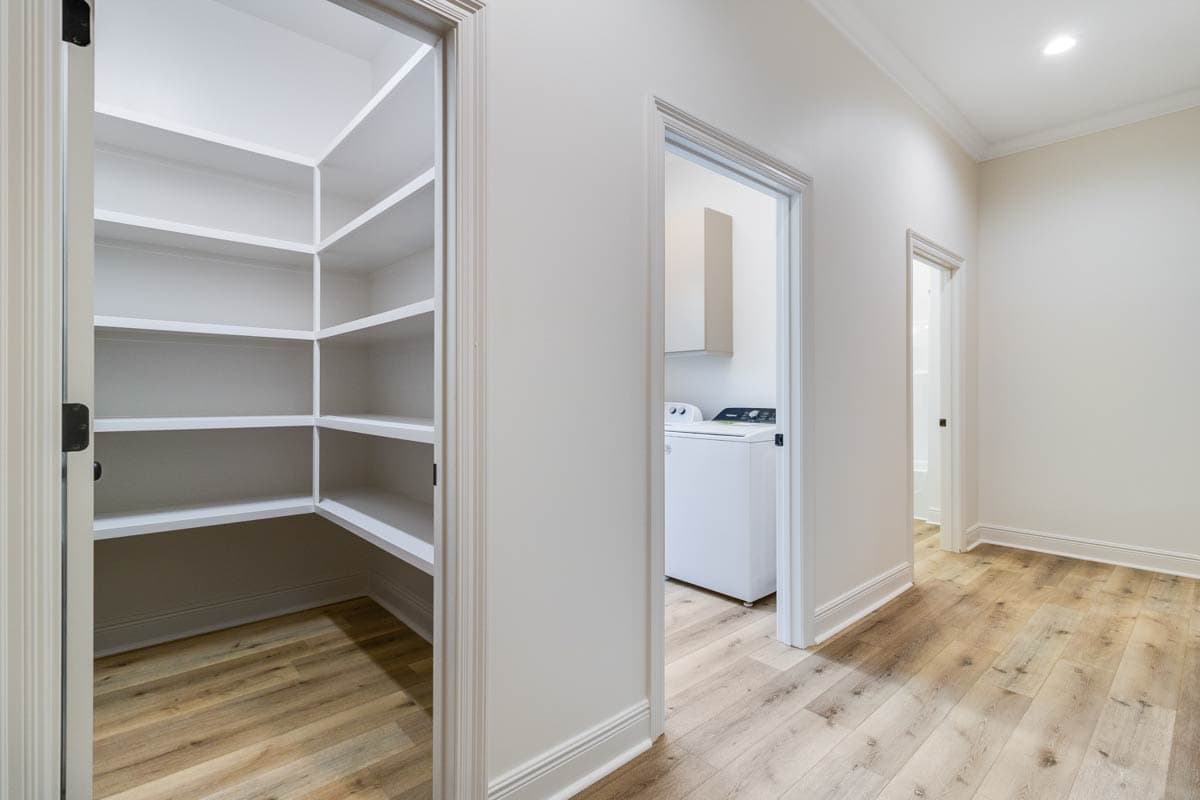

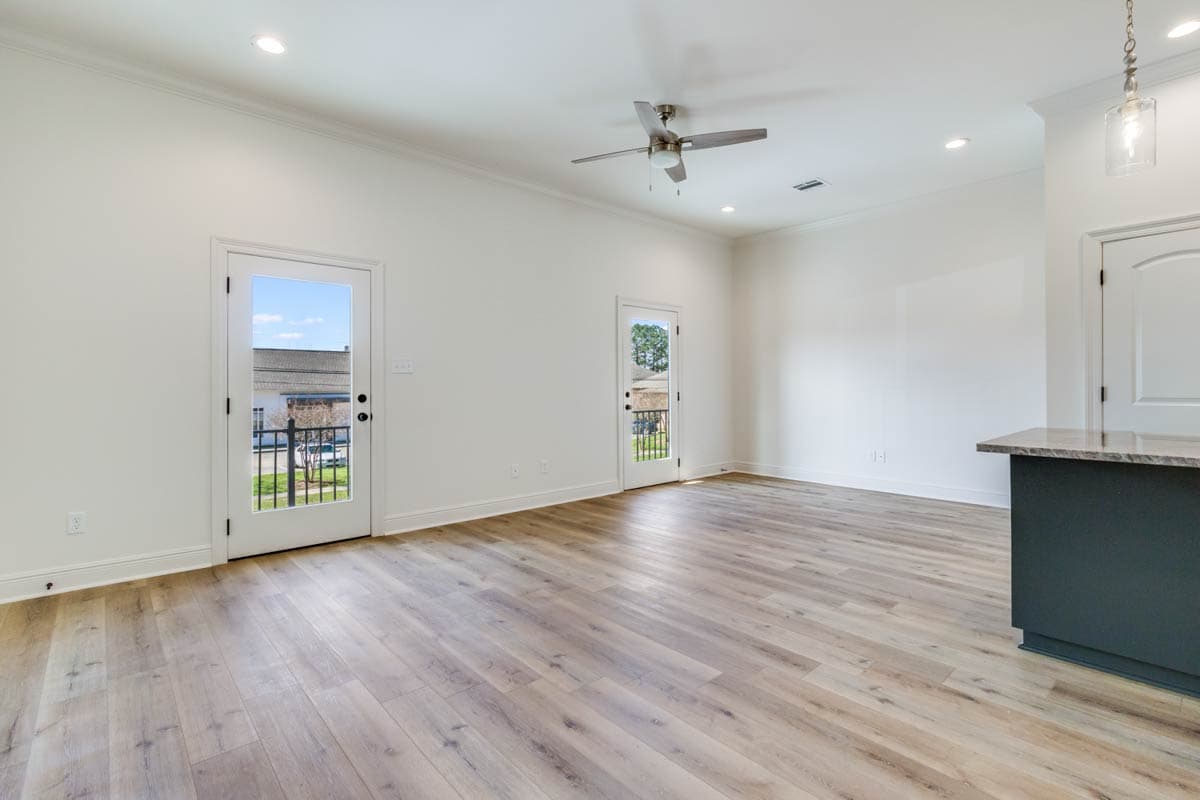

  • Both units feature an open-concept layout, seamlessly connecting the living, dining, and kitchen areas, ideal for comfortable daily life. Each kitchen includes an island and a convenient pantry, with Unit B specifically offering a butler walk-in pantry.
  • Unit A includes a private primary bedroom suite on the main level, complemented by a second clustered bedroom. Upstairs, Unit B features its own primary suite along with two additional clustered bedrooms, ensuring privacy and convenience for all residents.
  • Unit A enjoys a welcoming front porch, while Unit B boasts a private balcony, perfect for enjoying outdoor moments and fresh air.

Unit A
Heated Area
1,202Sq. Ft.
1202 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Standard
436 Sq. Ft.
Dimensions
22'width
89'depth
Unfinished Areas
436 Sq. Ft. Garage
Unit B
Heated Area
1,560Sq. Ft.
1560 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Dimensions
22'width
89'depth

What's Included

  • Cover Sheet with general notes, rendering perspectives, sheet index
  • Detailed floor plan (includes window and door schedule, plumbing fixture locations, trim notes, floor notes etc.)
  • Roof plan (birds eye view of roof) with wall and foundation details
  • Foundation plan with details
  • Four exterior views (front, rear, right, left)
  • Electrical layout plan included with some plans. Contact us for details.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,762 sq. ft.

1st Floor

1,202 sq. ft.

2nd Floor

1,560 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

22' 9"

Depth

89' 10"

Garage

Type

Standard

Area

436 sq. ft.

Count

1 or 2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Room

Ceiling Type

Height

All Bedrooms

9' 0''

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Modern

Mountain

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Plan Collections

Exclusive

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,762 sq. ft.

1st Floor

1,202 sq. ft.

2nd Floor

1,560 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

22' 9"

Depth

89' 10"

Garage

Type

Standard

Area

436 sq. ft.

Count

1 or 2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Room

Ceiling Type

Height

All Bedrooms

9' 0''

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Modern

Mountain

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Plan Collections

Exclusive

Photo Gallery
