Plan 52034HZ

Traditional Ranch Farmhouse House Plan with Split Bedrooms and Open Living

Heated S.F.
1,917
Beds
4
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 52034HZ

Main Level
Main Level
Basement Stairs Location
Basement Stairs Location

Plan 52034HZ

M-F 9am-5pm EST |

1-203-761-8500

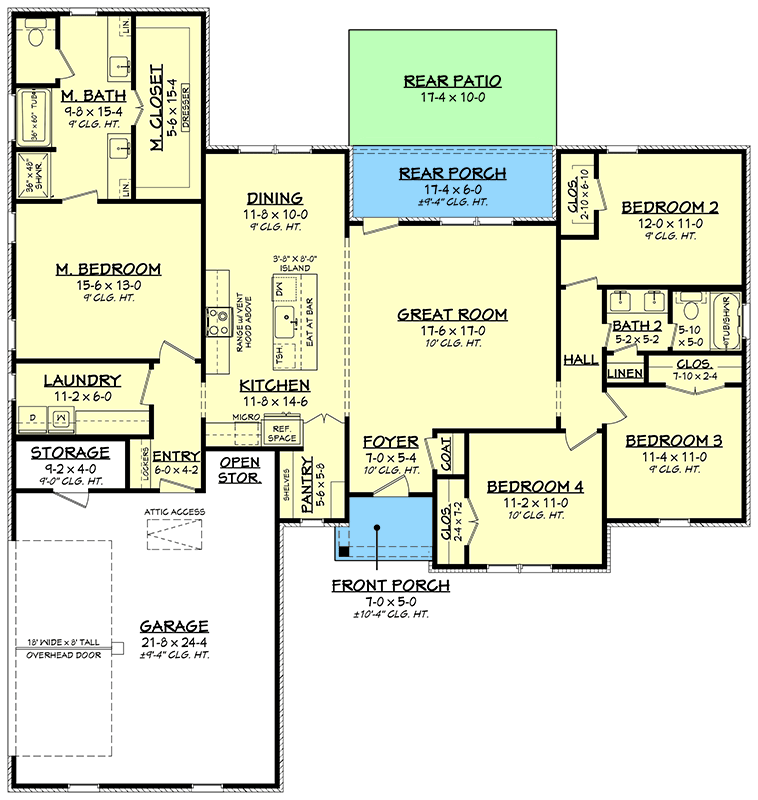

Main Level

Plan 52034HZ: Traditional Ranch Farmhouse House Plan with Split Bedrooms and Open Living - Floor Plan - Main Level - Country, Farmhouse, Traditional

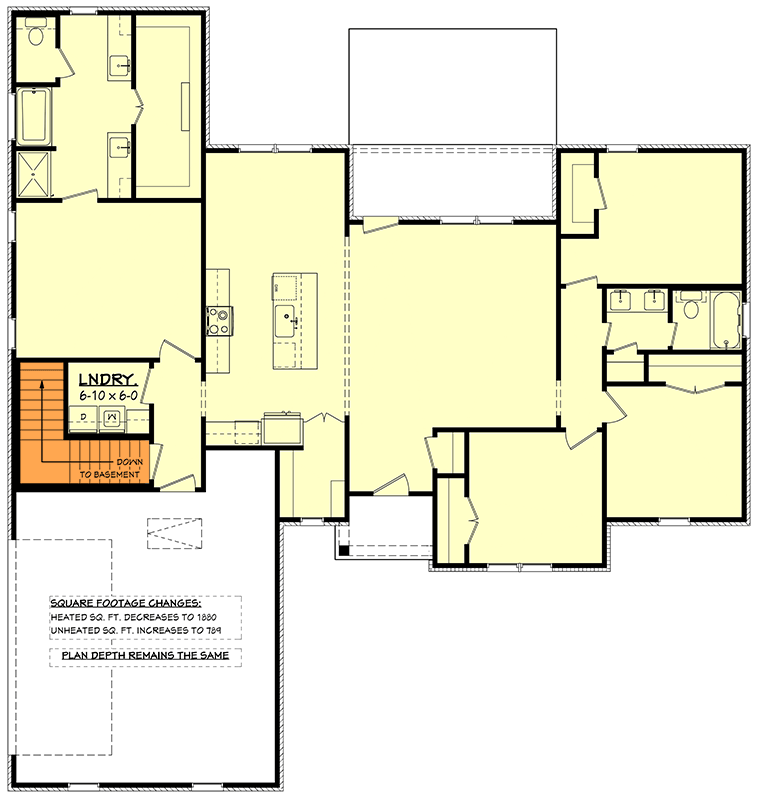

Basement Stairs Location

Plan 52034HZ: Traditional Ranch Farmhouse House Plan with Split Bedrooms and Open Living - Floor Plan - Basement Stairs Location - Country, Farmhouse, Traditional

Plan Details

  • This charming 1,917 sq ft traditional farmhouse house plan features 4 bedrooms, 2 full baths, and an attached 570 sq ft two-car side-entry garage.
  • Step through the inviting front porch into a welcoming foyer with a 10-foot ceiling and convenient coat closet, opening directly into the expansive great room.
  • The open-concept design seamlessly connects the great room, featuring a 10-foot ceiling, with the dining area and a gourmet kitchen that boasts a large island with seating and a walk-in butler's pantry.
  • A desirable split-bedroom layout places the private primary suite on the main floor, offering a spacious bedroom and bath, while three secondary bedrooms are clustered on the opposite side with easy access to a full bath.
  • Enjoy outdoor living on the generous rear porch and patio, complemented by a front porch perfect for morning coffee and a dedicated sports court for active enjoyment.

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

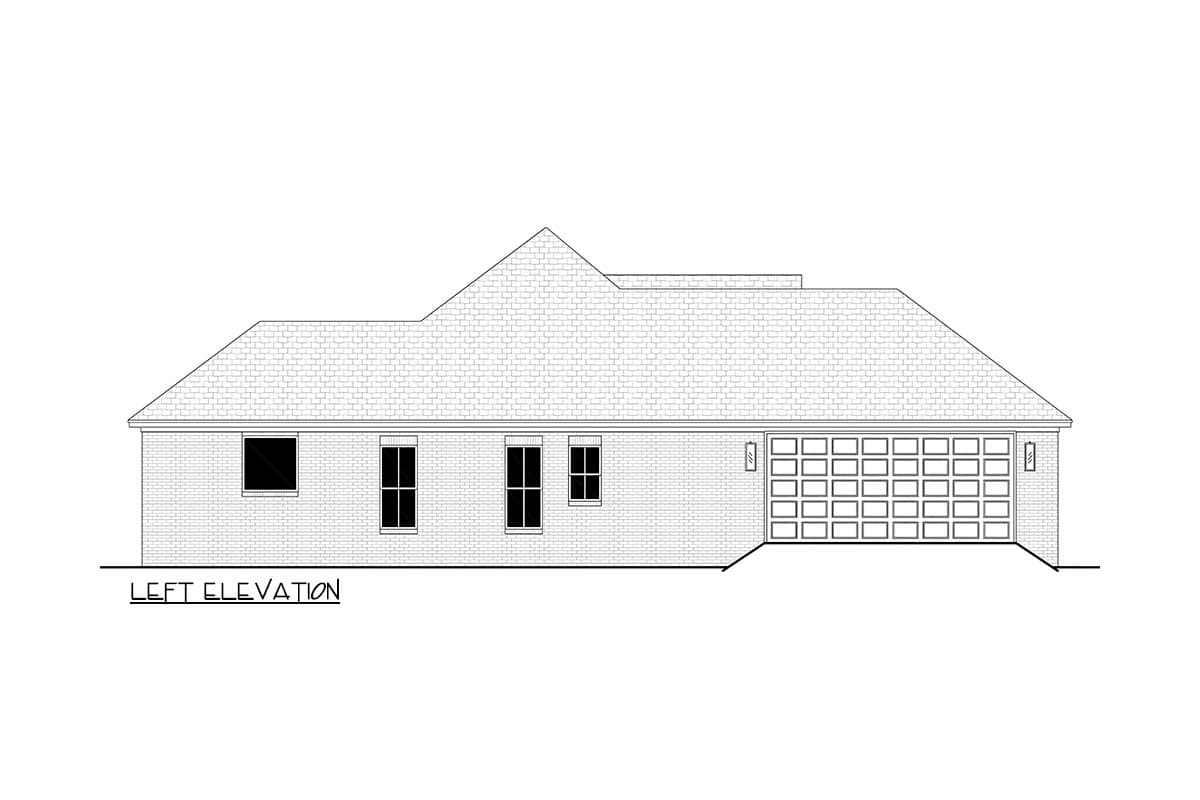

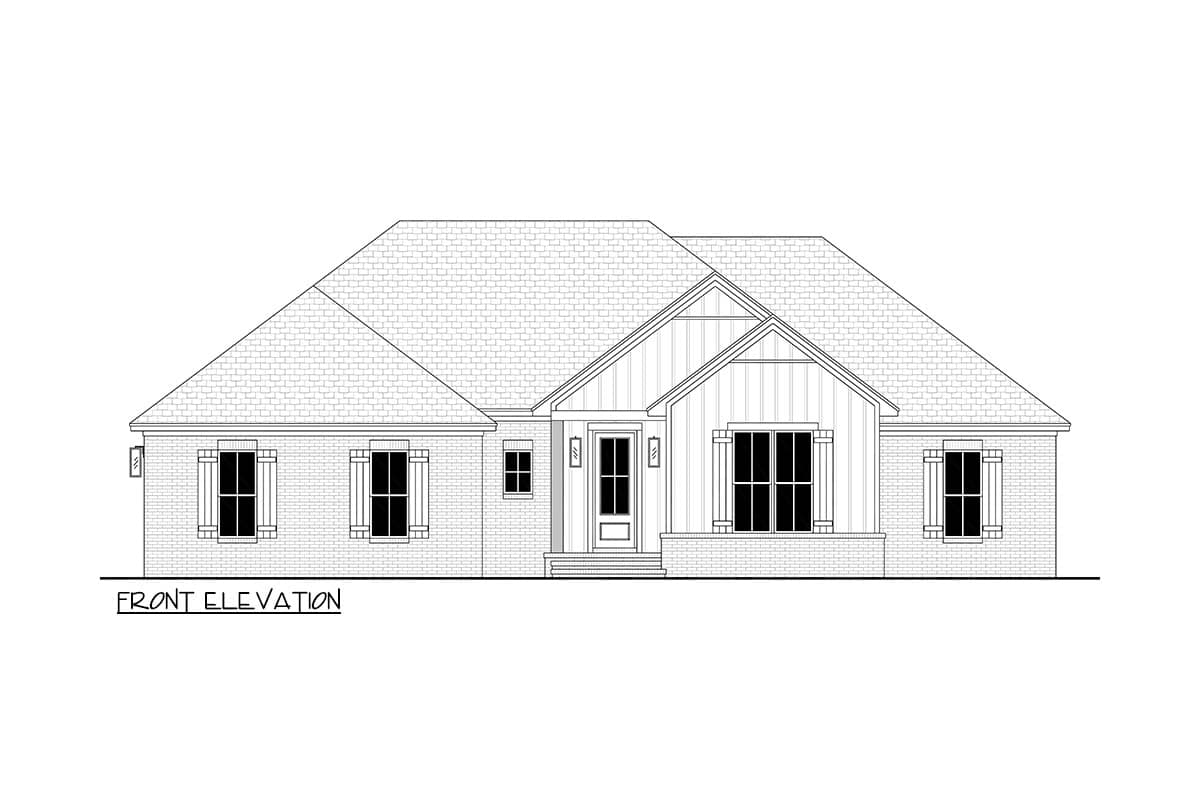

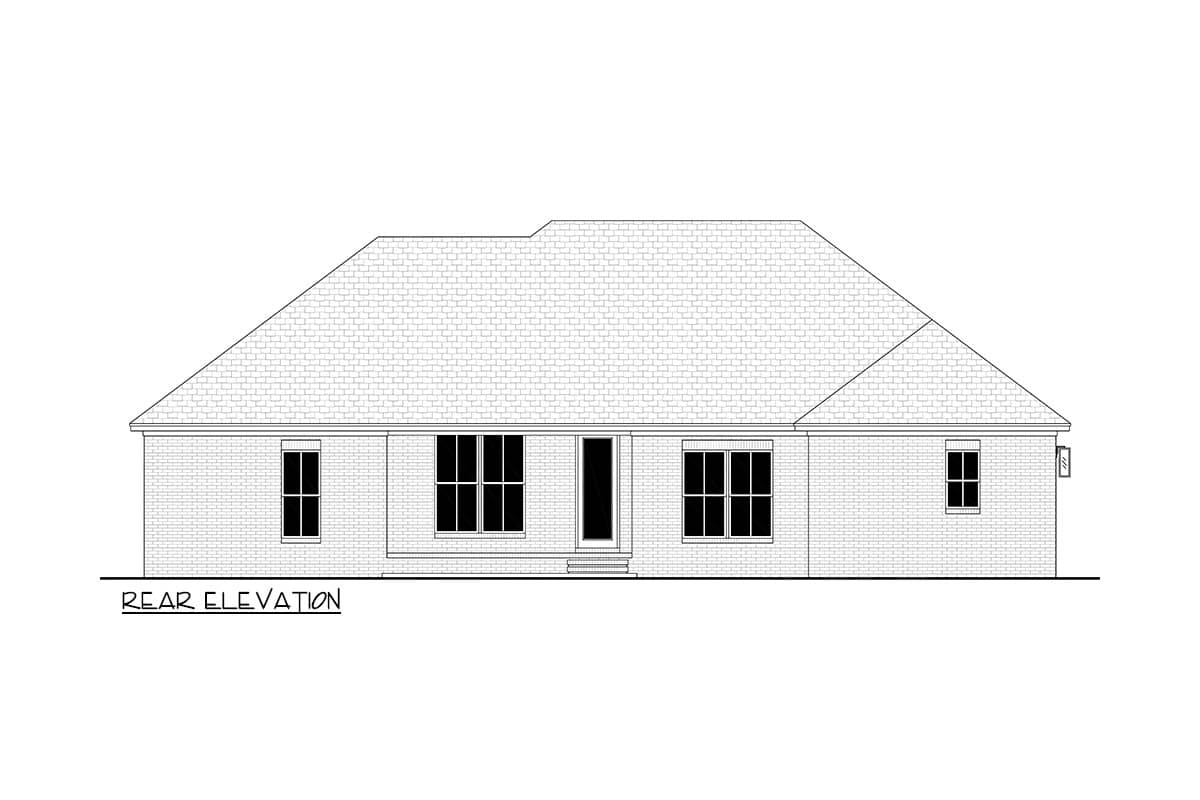

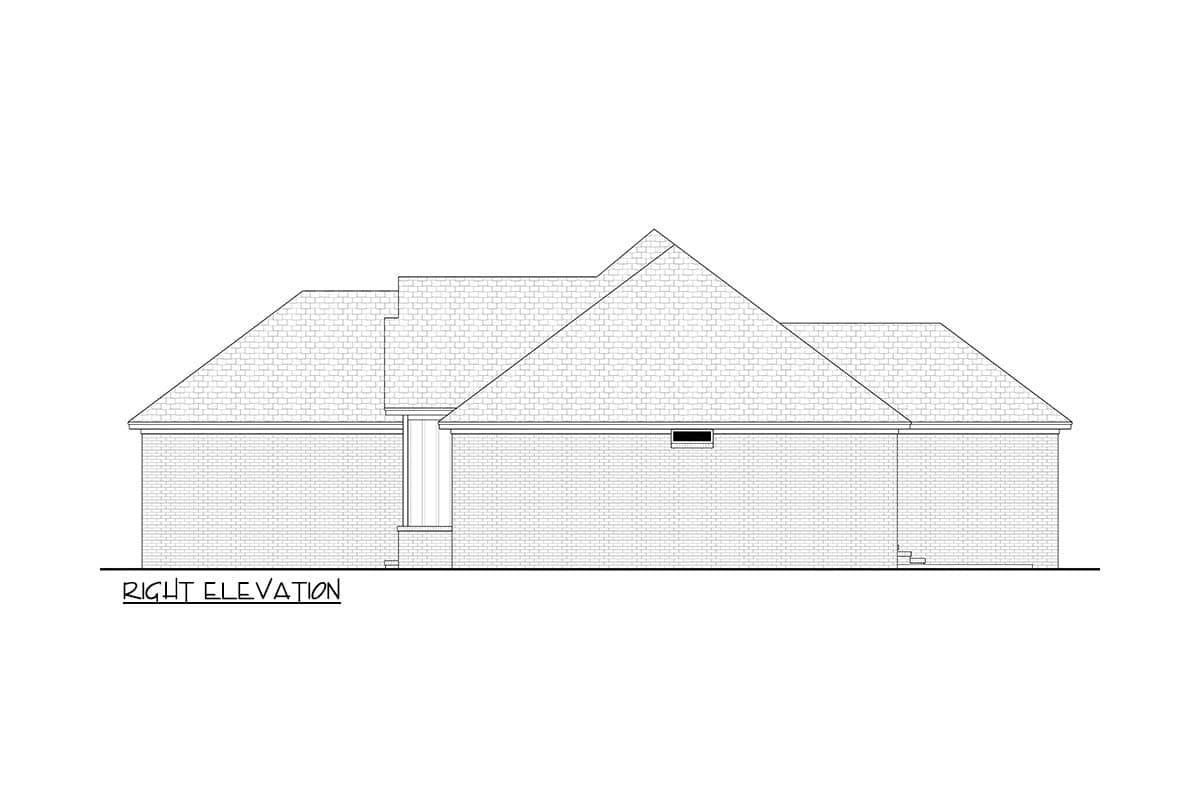

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,917 sq. ft.

1st Floor

1,917 sq. ft.

Porch, Front

37 sq. ft.

Porch, Rear

104 sq. ft.

Sports Court

41 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 4"

Depth

64' 10"

Max Ridge Height

22' 3"

Garage

Type

Standard, Attached

Area

570 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,917 sq. ft.

1st Floor

1,917 sq. ft.

Porch, Front

37 sq. ft.

Porch, Rear

104 sq. ft.

Sports Court

41 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 4"

Depth

64' 10"

Max Ridge Height

22' 3"

Garage

Type

Standard, Attached

Area

570 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
