Versatile 4 Bed Ranch Duplex House Plan with Split Living

Heated S.F.
1,892
Units
2
Width
Depth
Tour

Floor Plan

Plan 52532WM

Main Level
Main Level

Plan 52532WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

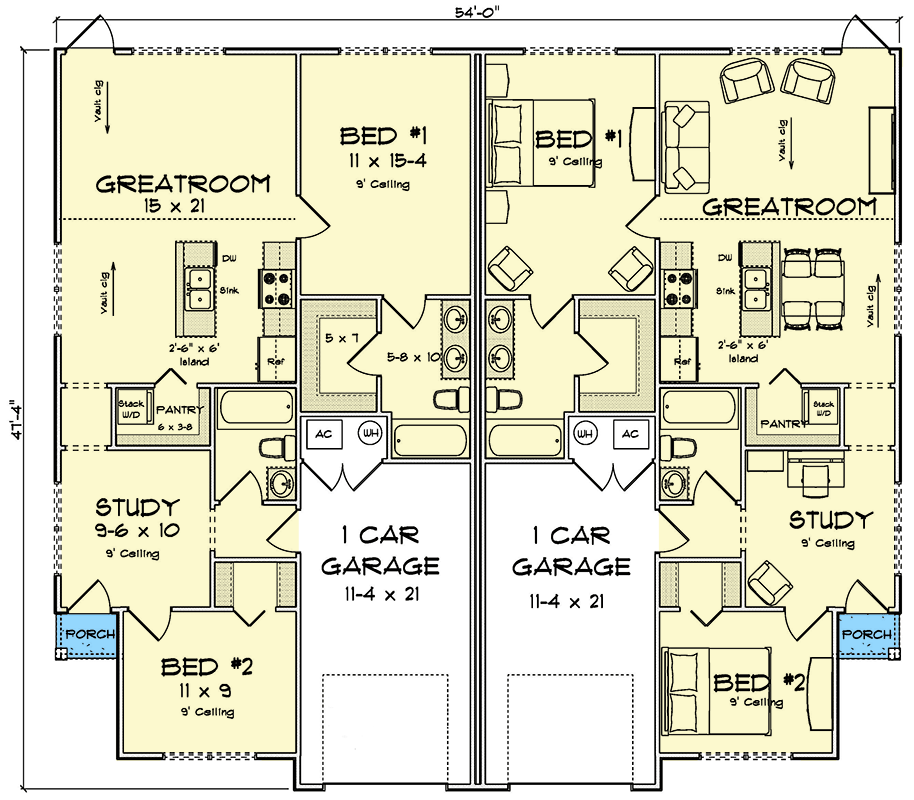

Plan 52532WM: Versatile 4 Bed Ranch Duplex House Plan with Split Living - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This modern ranch duplex house plan offers a total of 1,892 finished square feet, featuring 4 bedrooms, 4 full baths, and an attached 2-car garage totaling 528 square feet.
  • This duplex house plan features two identical units, each with its own private front entrance and a functional layout designed for comfortable, independent living.
  • Each unit features an efficient, open-concept flow, connecting the main living spaces and including a well-appointed kitchen with a walk-in butler pantry, alongside a main level laundry.
  • The primary suite in each unit is thoughtfully separated for privacy, offering a serene retreat from the additional secondary bedroom, both serviced by full baths on the main floor.
  • A charming front porch for each unit provides a welcoming entry and a small space for outdoor enjoyment.
Unit A & B
Heated Area
946Sq. Ft.
946 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Standard
264 Sq. Ft.
Dimensions
27'width
47'depth
Unfinished Areas
264 Sq. Ft. Garage
12 Sq. Ft. Porch, Front

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,892 sq. ft.

1st Floor

1,892 sq. ft.

Porch, Front

24 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

47' 4"

Max Ridge Height

20' 10"

Garage

Type

Standard, Attached

Area

528 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,892 sq. ft.

1st Floor

1,892 sq. ft.

Porch, Front

24 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

47' 4"

Max Ridge Height

20' 10"

Garage

Type

Standard, Attached

Area

528 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor
