Plan 270086AF

4 Bed Modern Lake House Plan with Finished Lower Level - 2760 Sq Ft

Heated S.F.
2,760
Beds
3
Baths
2
Stories
1

Floor Plan

Plan 270086AF

Main Level
Main Level
Lower Level
Lower Level

Plan 270086AF

M-F 9am-5pm EST |

1-203-761-8500

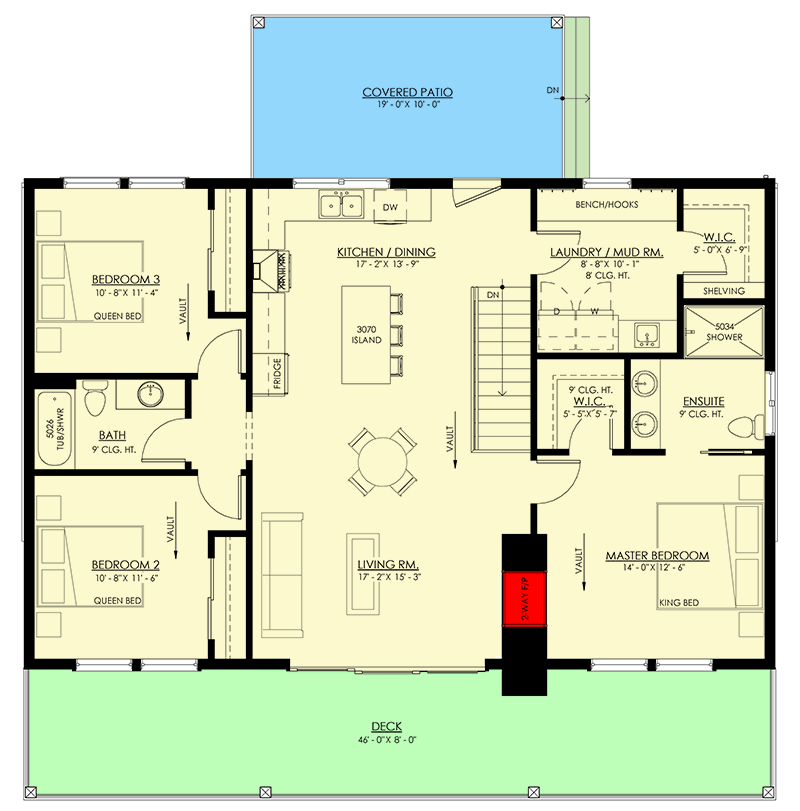

Main Level

Plan 270086AF: 4 Bed Modern Lake House Plan with Finished Lower Level - 2760 Sq Ft - Floor Plan - Main Level - Mid Century Modern, Modern, Mountain

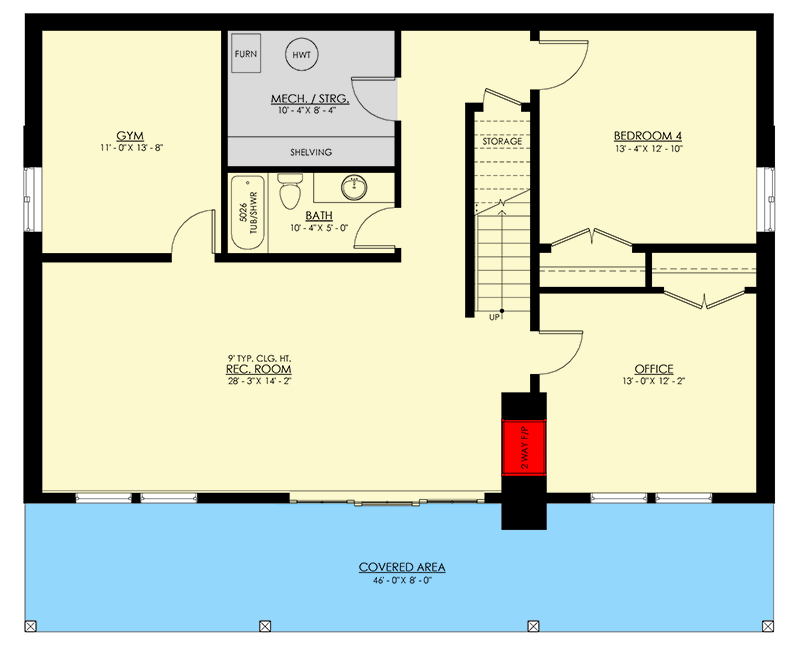

Lower Level

Plan 270086AF: 4 Bed Modern Lake House Plan with Finished Lower Level - 2760 Sq Ft - Floor Plan - Lower Level - Mid Century Modern, Modern, Mountain

Plan Details

  • This 4-bed modern lake house plan gives you 2,760 square feet of heated living with 3 of the beds on the main floor in a split layout and the 4th in the finished walkout basement.
  • The interior slopes from 8'4" along the kitchen end to 13'4" along the porch end.
  • All the rooms on the front have windows designed to capture the views.
  • In addition to a fourth bedroom, the lower level gives you a home gym, a rec room, a home office with 2-sided fireplace, storage and access to a 46' wide and 8' deep covered area.
  • Related Plans: Eliminate the walkout basement with house plans 270037AF (1,380 sq. ft.) and 270059AF (1,378 sq. ft.). Get a modern farmhouse exterior with a slightly altered layout with house plan 270092AF (1,378 sq. ft)

What's Included

  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges

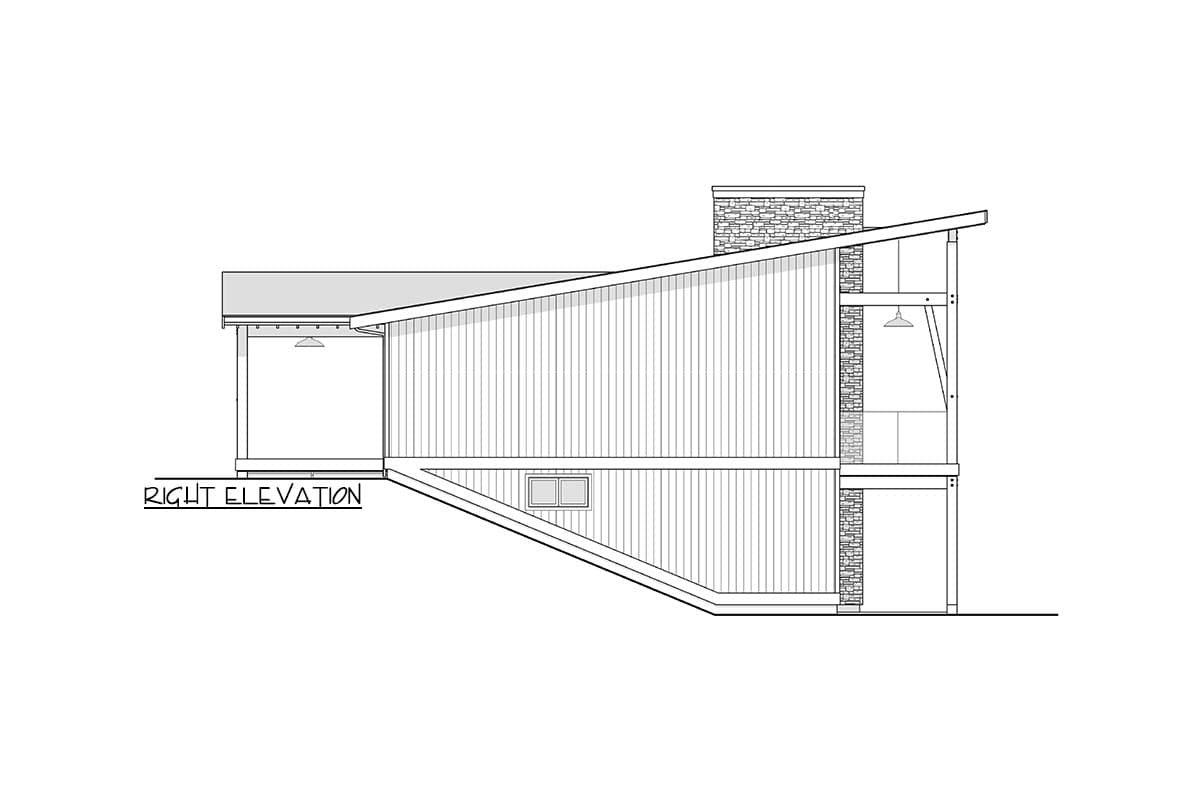

  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing - layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,760 sq. ft.

Lower Level

1,380 sq. ft.

1st Floor

1,380 sq. ft.

Porch, Front

368 sq. ft.

Porch, Rear

368 sq. ft.

Deck

368 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

48' 0"

Max Ridge Height

22' 5"

Ceiling Heights

Lower Level

9'

First Floor

8' 5"

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

1.5 on 12

Framing Type

Stick

Architectural Style

Mid Century Modern

Modern

Mountain

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Canadian House Plans

Lake House Plans

Sloping Lot
