Contemporary Triplex House Plan with 5 Bedrooms and Modern Design

Heated S.F.
2,452
Units
3
Width
Depth

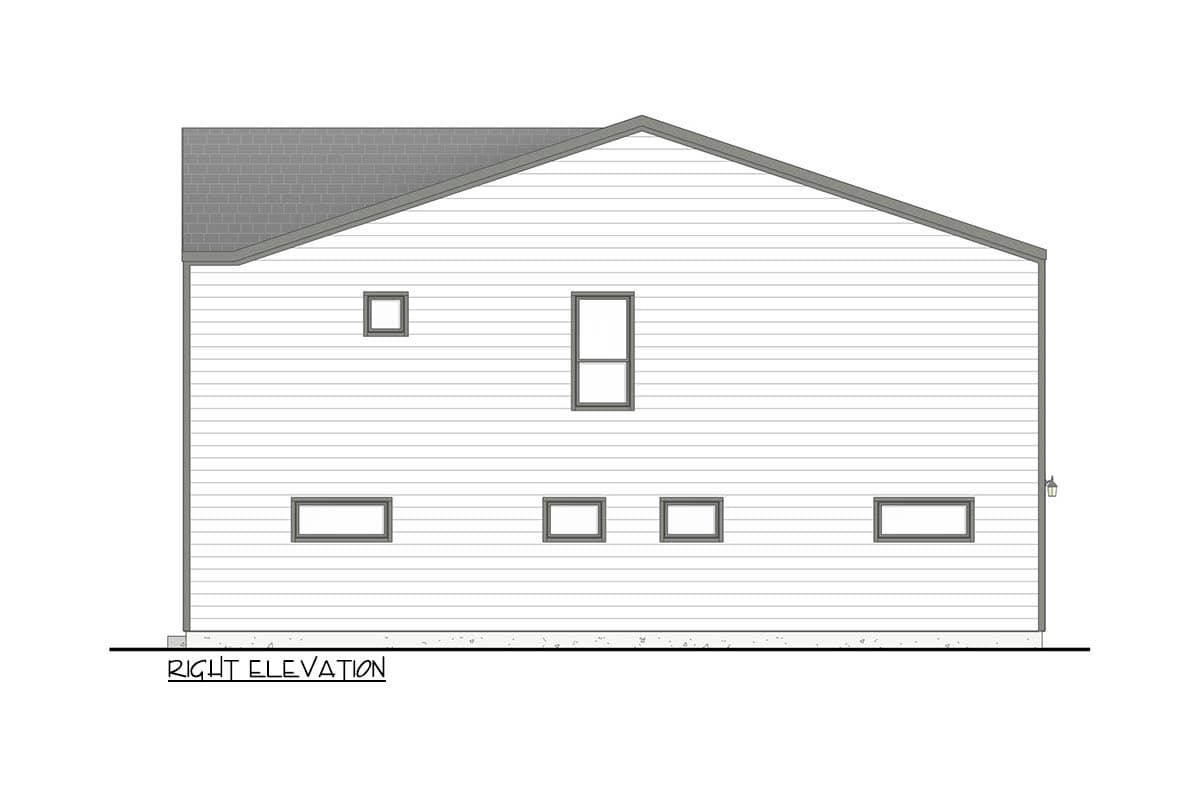

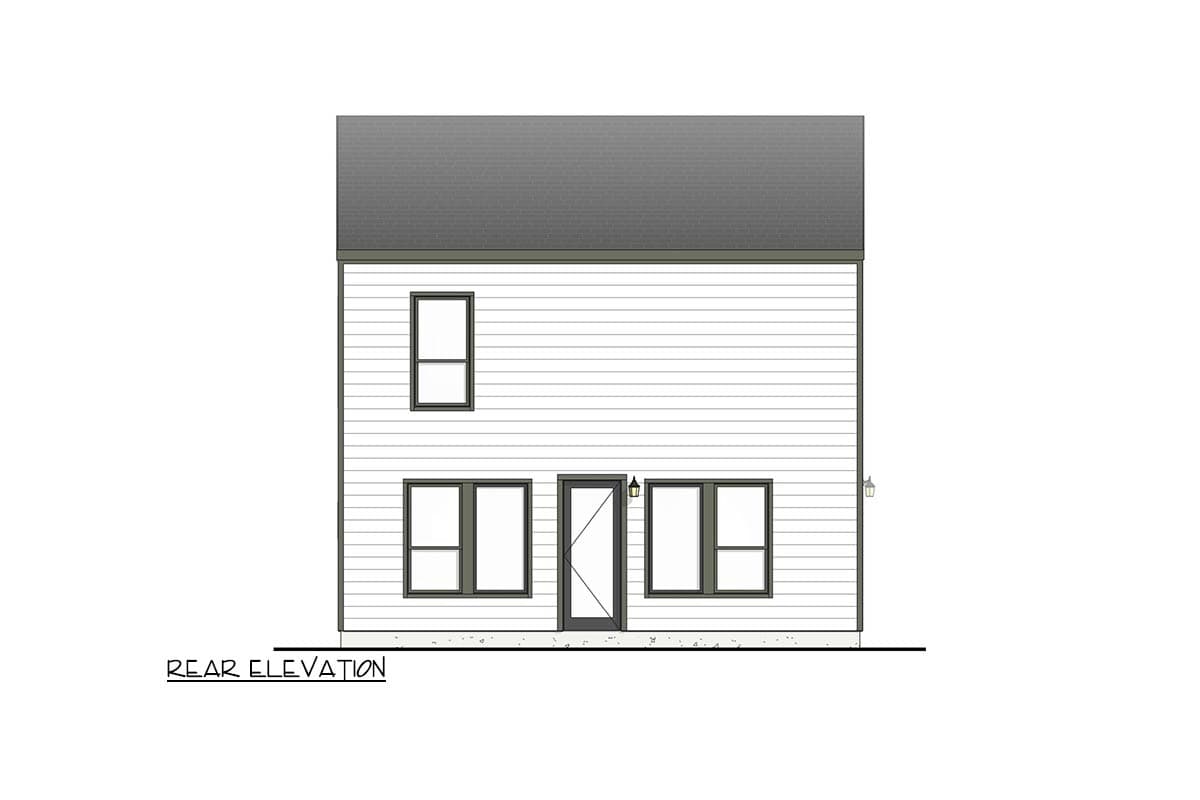

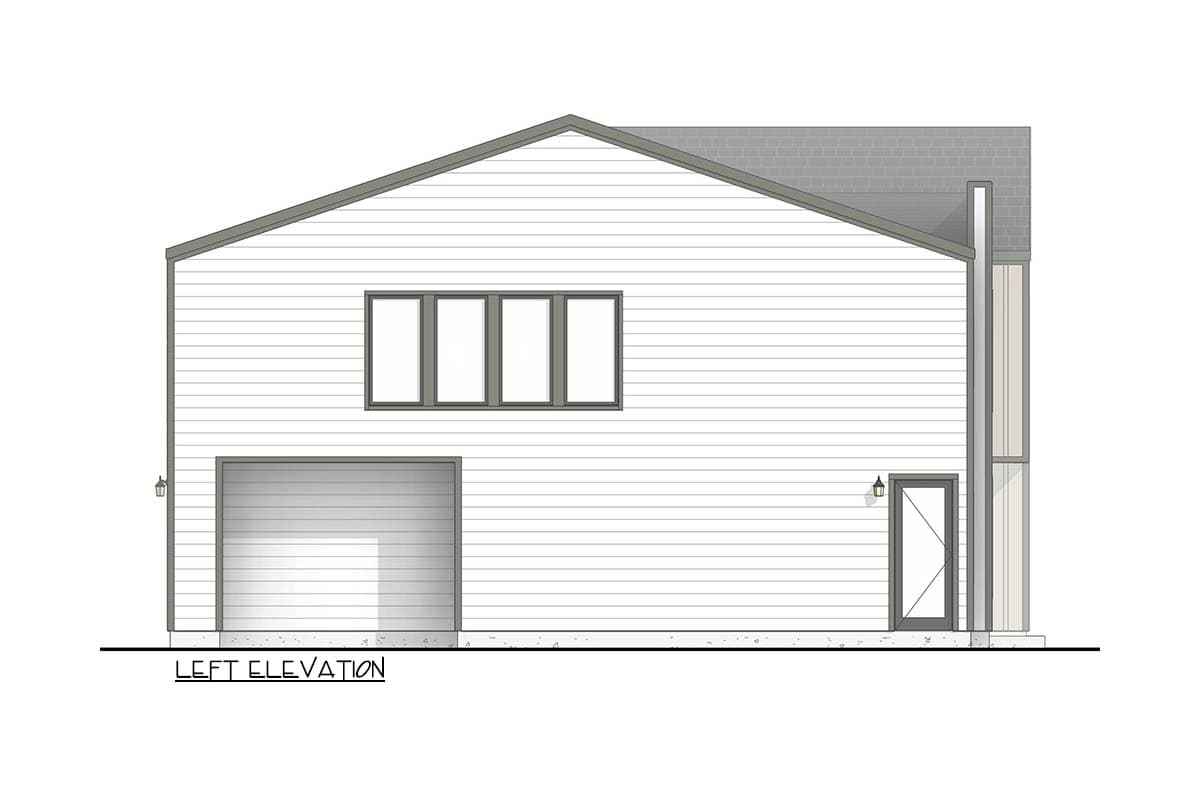

Floor Plan

Plan 100368GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100368GHR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

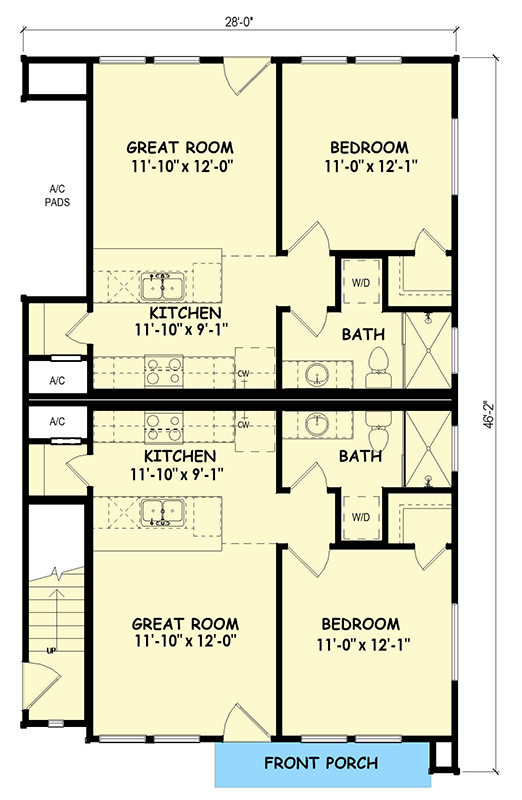

Plan 100368GHR: Contemporary Triplex House Plan with 5 Bedrooms and Modern Design - Floor Plan - Main Level - Contemporary, Modern, Scandinavian

2nd Floor

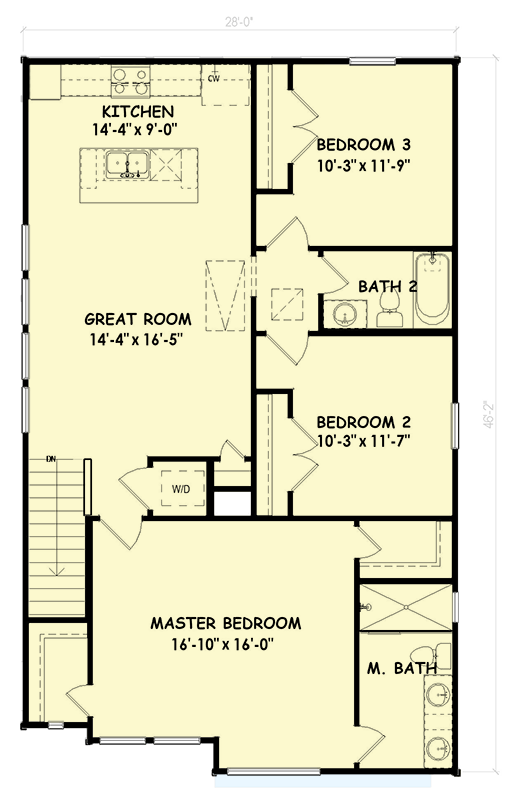

Plan 100368GHR: Contemporary Triplex House Plan with 5 Bedrooms and Modern Design - Floor Plan - 2nd Floor - Contemporary, Modern, Scandinavian

Plan Details

  • This contemporary triplex house plan offers a total of 2,452 finished sq ft across three units, featuring 5 bedrooms and 4 full baths, showcasing a sleek modern Scandinavian aesthetic.
  • A welcoming front path leads to the main entrance, opening into a thoughtfully designed triplex structure that accommodates two compact 1-bedroom units on the first floor and a spacious 3-bedroom unit above.
  • Each first-floor unit (A & B) features an efficient open-concept layout, combining living, dining, and kitchen areas, ideal for modern urban dwellers. The larger second-floor Unit C boasts a more expansive living space with defined zones for comfort and versatility.
  • The first-floor units each include a private 1-bedroom suite with convenient bath access. Unit C on the second floor offers a spacious primary bedroom suite, thoughtfully separated from two additional clustered bedrooms, providing privacy and comfort.
  • A modest 45 sq ft front porch provides a welcoming outdoor transition for residents and visitors alike, enhancing the building's curb appeal.
Unit A & B
Heated Area
546Sq. Ft.
546 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
56'width
48'depth
18' 1"height
Unit C
Heated Area
1,289Sq. Ft.
1289 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Dimensions
28'width
46'depth

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,452 sq. ft.

1st Floor

1,163 sq. ft.

2nd Floor

1,289 sq. ft.

Porch, Front

45 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

46' 2"

Max Ridge Height

27' 10"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Scandinavian

Special Features

Bedrooms - Clustered

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,452 sq. ft.

1st Floor

1,163 sq. ft.

2nd Floor

1,289 sq. ft.

Porch, Front

45 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

46' 2"

Max Ridge Height

27' 10"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Scandinavian

Special Features

Bedrooms - Clustered

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Plan Collections

Exclusive
